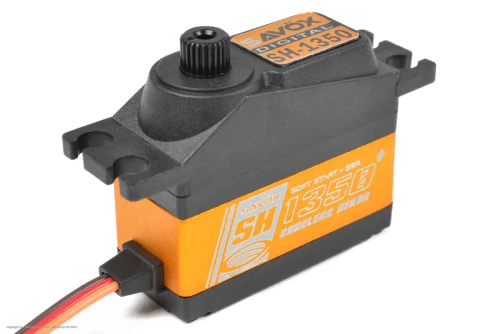

The Savox SH-1350 is a high-performance mini digital coreless servo for compact RC applications where rapid response, weight savings, and precise torque are vital. Encased in a signature hybrid aluminium and composite housing, it balances efficient heat dissipation with a lightweight 26-gram profile.
The technical parameters for the servo include:
- Torque: 3.7 kg-cm @ 4.8V | 4.6 kg-cm (63.9 oz-in) @ 6.0V
- Speed: 0.13 sec/60° @ 4.8V | 0.11 sec/60° @ 6.0V
- Dimensions: 35.0 x 15.0 x 29.2 mm
- Weight: 26.0 g
- Motor Type: High-efficiency Coreless
- Gear Train: High-strength Composite Gears
- Output Spline: 25-Tooth (25T standard)
Due to its mini dimensions and fast transit speed, the SH-1350 is ideally optimised for:
- Helicopters: Cyclic (CCPM) servos on 500-class helis or high-speed rudder/tail control on 450-class builds.
- Fixed-Wing Aircraft: Control surfaces on mid-sized airplanes requiring digital precision.
- RC Cars: Steering setups for smaller scales, such as 1/12th scale on-road or off-road vehicles.
